Hot Selling High lumen die casting aluminum housing 80W 120W 150W 180w beam angle adjustable led street light price list

FOB Reference Price:Get Latest Price
$70.00 - $128.00 / Piece | 1 Piece/Pieces (Min. Order)
Emitting Color:
Cold White Warm White White
Lamp Power(W):
180
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
$128.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Lighting solutions service:
Lighting and circuitry design, auto CAD layout
Light Source:
LED
Input Voltage(V):
AC100-277V 50/60Hz
Lamp Luminous Flux(lm):
23400
CRI (Ra>):
70
Working Temperature(℃):
-40℃ - 50℃
Working Lifetime(Hour):
50000
IP Rating:
IP65
Place of Origin:
Fujian, China
Brand Name:
HF
Model Number:
HF-LED773-3 180w
Beam Angle(°):
120
Application:
high way, main road in chity, bridge, etc., For high way, main road in chity, bridge, etc.
Color:
Dark Grey
Power Supply:
AC
Lamp Luminous Efficiency(lm/w):
130lm/w
Color Temperature(CCT):
2700-6500K
Product Name:
LED street light
Material:
Die casting aluminum housing with tempered glass
Driver:
Meanwell Driver Sosen Driver Domestic Driver
Arm Dia.:
60mm
PF:
>0.9
Size L*W*H:
764*344*124
Warranty(Year):
5Year
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1PCS/CTN
Standard export carton packing
Port
Fuzhou, Xiamen, Ningbo, Shanghai
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
Product Description
60W-180W can adjustable angle high lumen LED outdoor street light
1. Die-cast aluminum housing with heat radator
2. IP65
3.SMD
4. Adjustable angle
5. High tempered glass

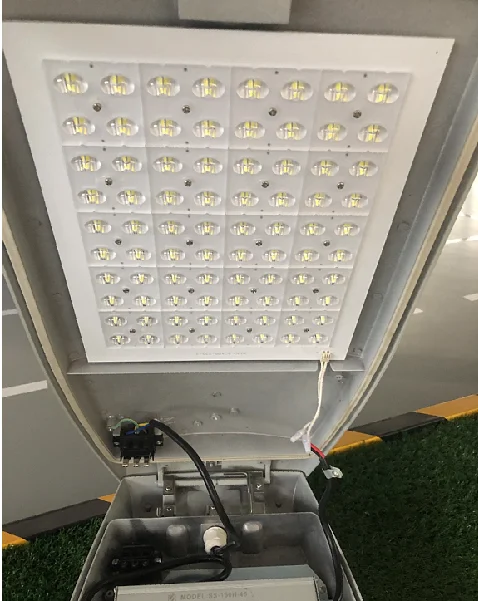

LED CHIPS

1.3030 SMD LED Chip, high lumen 130-140lm/w
2.4pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds
3.Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.

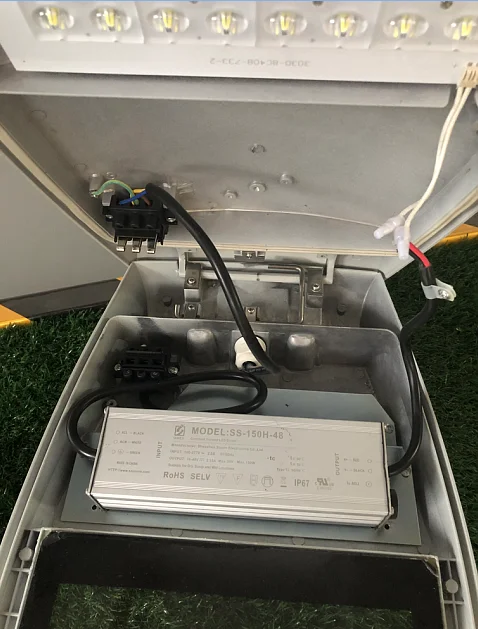

Sosen or
Mean well driver

Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to
over-current,over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.





Heat radiator


Inside thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend
life span of the leds, effectively reduce the following maintenancecose.





1.Adjustable angle can Vertical or Horizontal installation
2.Nice appearance and non-fouling properties, Protection class IP67.





Packing:
White foam protection
Product Paramenters
HF-LED773 Street light
Model
HF-LED773-1
HF-LED773-2
HF-LED773-3
Power
60W/80W
100W/120W/150W
180W
Input Voltage
AC85-265V 50/60Hz
Power Factor
>0.95
Lumens
130lm/W
3200lm
000lm
Color Temperature
2700-6500K
CRI
>75
Operating Temperature
-40°C-50°C
Size
585*260*116mm
688*317*124mm
764*344*124mm
Arm Dia.
φ60mm

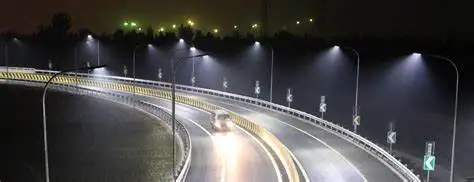

Application
Recommend Products
Certifications
Why Choose Us

Our factory

Fuzhou Huifeng Lighting Technology Co., Ltd, established in 1995, is a professional manufacturer engaged in the research, development, production, sale and service of street light, flood light, wall pack light, highbay light, etc. Our products are popular in USA, Europe, Southeast Asia and South America.

We have executed ISO9001:2008 Certificate System since from 2003, Huifeng lighting is famous brand in Fujian province. We oen more than 30 patents based LED Lighting R&D results and the related products have ETL, CE, RoHS and CCC Certificate.

Perfect environment and conditions for R&D and innovation

Huifeng has very strick Quality Control System, from checking and evaluation of incoming materials to the delivery of products, each item will be checked and tested for several times.
Payment&Shipping
FAQ

Payment Terms:

1. Samples: Bank T/T, 100% payment in advance;

2. Bulk order: Bank T/T, 30% deposit and balance 70% settled before shipment.

Delivery time:

1. Samples: 10-15 working days;

2. Bulk order: 20-30 days after advance payment.

Warranty:

1-5 years warranty

Shipping Method:

1. By Express: DHL, UPS, FedEx, a fast and safe way for shipping, normally 3-5 working days for delivery;

2. By Air: In some area, the shipping cost by air is more favorable than by Express; 3-5 days for delivery;

3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.

4. Your shipping agent or forwarder.

After-sale Service:

1. Quick reply on customers' questions;

2. If anything goes wrong with the products'quality, we will replace for you free.

3. Make you a happy ordering.

Quality Control:

100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability, and we will also test its temperature after 24 hours & rsquo lighting. Then after it is cool we again test 100% of the lamps to see if it still work well;Each lamp should pass all these QC procedures before shipping to customer.

Delivery detail:

We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive or by sea which takes about one month to arrive , depending on your actual requirements.

Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-trained and passion sales & after- sale services who can speak fluent English language;
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
